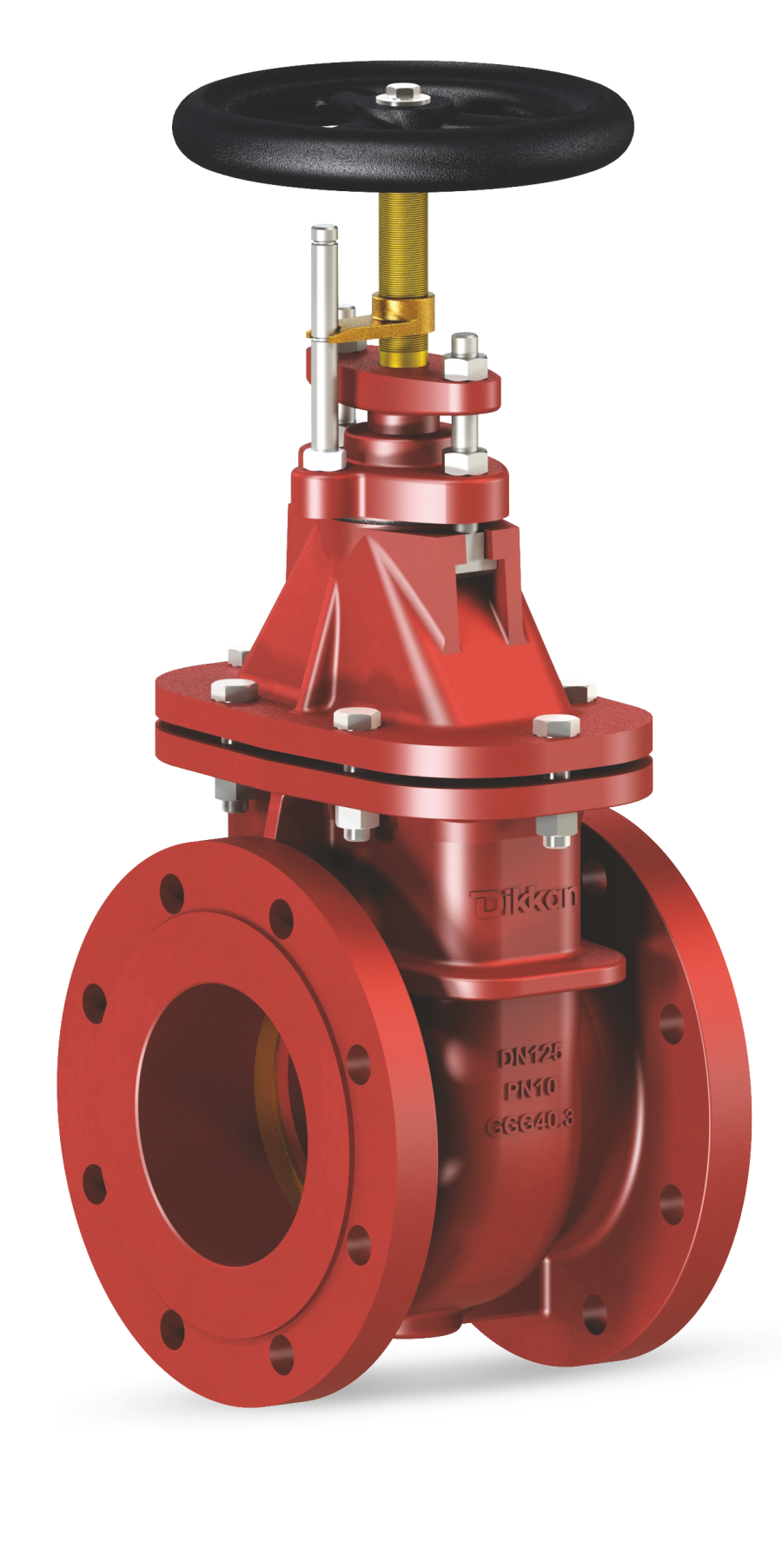

Gate Valve With Indicator Non Rising Ansi Length

Gate Valve

Cast Steel
Bronze
Indicator

Technical Specifications

Standard	Special Design, ANSI Length
Face to face	ASME B16.10
Flange dimension	ANSI Flanges acc. to ASME B16.5
Pressure rating	PN4 - PN 16
Options	Drain plug, double threaded stem, chainwheel, gearbox electrical actuator, top flange for actuator assembly. Special flange drilling acc. to DIN or JIS

ANSI Ductile Iron Dikkan gate valves with bronze seats, raised or flat faced flanges acc.
to ANSI 150 bolted bonnet and adjustable gland and ANSI face to face length.
Inside screwed stem, non-rising stem and handwheel.
Application: Cold and hot water, fresh water, seawater.

Contact
Dikkan Valve
Kemalpaşa OSB Mah.
İzmir Kemalpaşa Asfaltı Cad.
No:30 İç Kapı No:1,
Kemalpaşa / İzmir / Türkiye
Phone: 0090 232 877 17 14
Fax: 0090 232 877 17 15

Write e-mail

My Dikkan

In order to use all functions and advantages of the site, you need a user account.

			Working pressure [bar]	Hydro test pressure [bar]
Bore	Pressure rating	120 ºC	Casing	Closure
DN 40 - DN 200	PN16	16	24	17.6
DN 250 - DN 300	PN10	10	15	11
DN 350 - DN 500	PN6	6	9	6.6
DN 600	PN4	4	6	4.4

Part No.	Component	Material
1	Body	A 216 Gr. WCB (GSC25)
2	Bonnet	A 216 Gr. WCB (GSC25)
3	Wedge	A 216 Gr. WCB (GSC25)
4	Seats	B 62 C83600 (RG5)
5	Stem	B 124 C37700 (Ms58)
6	Bolts, nuts	Steel
7	Bonnet gasket	Asbestos-free
8	Gland packing	PTFE
9	Handwheel	A 126 Gr. B (GG25)
10	Indicator	B 62 C83600 (Rg5)

DN [mm]	Flange Connection	ØD [mm]	L [mm]	H [mm]	ØR [mm]	Weight [kg]	IMPA code	Dikkan ordering code
40	Class150	125	165	235	140	12	-	A0018258XXPAA08400400000
50	Class150	150	178	235	140	14	757261	A0018258XXPAA08400500000
65	Class150	180	190	255	160	19	-	A0018258XXPAA08400650000
80	Class150	190	203	280	160	22	757262	A0018258XXPAA08400800000
100	Class150	230	229	305	200	30	757263	A0018258XXPAA08401000000
125	Class150	255	254	390	200	42	-	A0018258XXPAA08401250000
150	Class150	280	267	435	200	53	757264	A0018258XXPAA08401500000
200	Class150	345	292	530	250	86	757265	A0018258XXPAA08402000000
250	Class150	405	330	630	315	140	757266	A0018258XXPAA04402500000
300	Class150	485	356	740	315	180	757267	A0018258XXPAA04403000000
350	Class150	535	381	845	400	245	-	A0018258XXPAA17803500000
400	Class150	595	406	890	400	325	-	A0018258XXPAA17804000000
450	Class150	635	432	985	400	385	-	A0018258XXPAA17804500000
500	Class150	700	457	1120	500	535	-	A0018258XXPAA17805000000
600	Class150	815	508	1290	500	660	-	A0018258XXPAA13506000000
