Dikkan Figure 18ANSI.358

Bookmark Product
Share Product
IOM Download

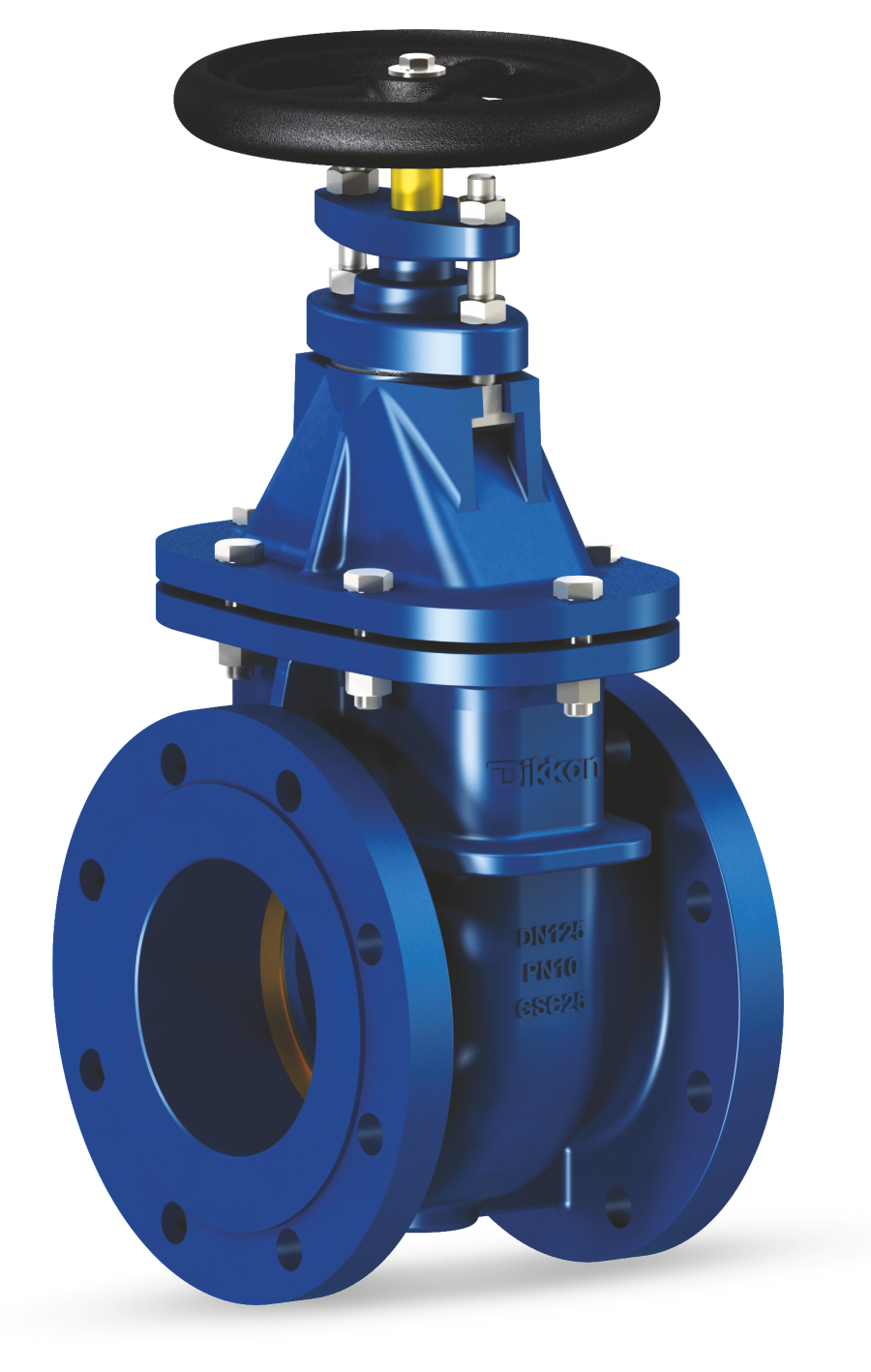

Gate Valve With Indicator Non Rising Ansi Length

Gate Valve

  • Ductile Iron

  • Bronze

  • Indicator

Technical Specifications

Standard

Special Design, ANSI Length

Face to face

ASME B16.10

Flange dimension

ANSI Flanges acc. to ASME B16.5

Pressure rating

PN4 - PN 16

Options

Drain plug, double threaded stem, chainwheel, gearbox
electrical actuator, top flange for actuator assembly.
Special flange drilling acc. to DIN or JIS

  • ANSI Ductile Iron Dikkan gate valves with bronze seats, raised or flat faced flanges acc.
    to ANSI 150 bolted bonnet and adjustable gland and ANSI face to face length.
    Inside screwed stem, non-rising stem and handwheel.

  • Application: Cold and hot water, fresh water, seawater.
