Products / Marine / Gate Valve

Dikkan Figure 16ANSI.158

Bookmark Product
Share Product
IOM Download

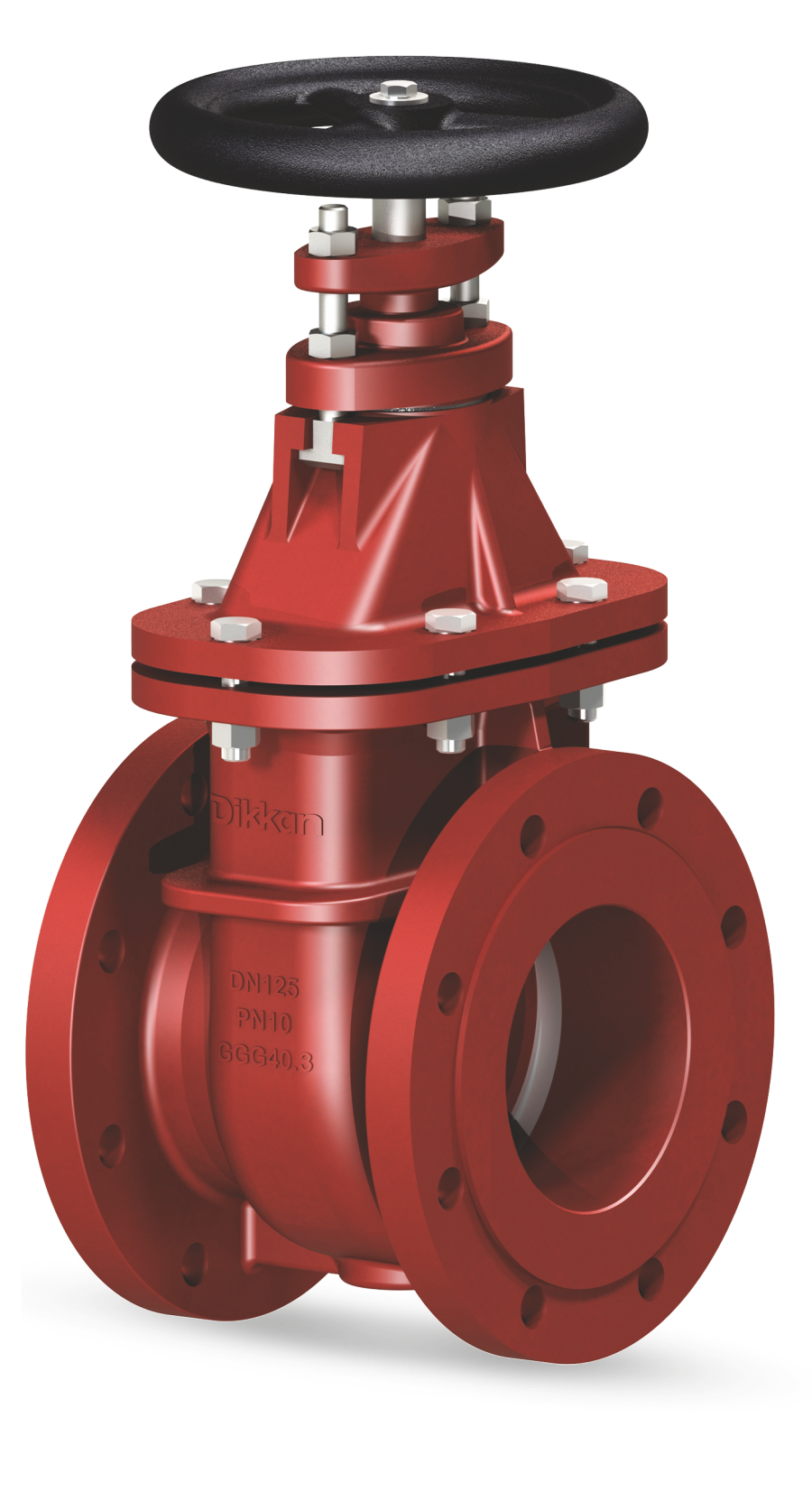

Gate Valve Non Rising Ansi Length

Gate Valve

  • Cast Iron

  • Bronze

Technical Specifications

DesignSpecial Design, ANSI Length
Face to faceASME B16.10
Flange dimensionANSI Flanges acc. to ASME B16.1 & 5
Pressure ratingPN 2.5 - PN 10
OptionsDrain plug, double threaded stem, chainwheel, gearbox
electrical actuator, top flange for actuator assembly.
Flange optionsSpecial flange drilling acc. to DIN or JIS
  • ANSI Cast Iron Dikkan gate valves with bronze seats, flat faced flanges acc. to
    ANSI 125, bolted bonnet and adjustable gland and ANSI face to face length.
    Inside screwed stem, non-rising stem and handwheel.

  • Application: Cold and hot water, fresh water, seawater.
